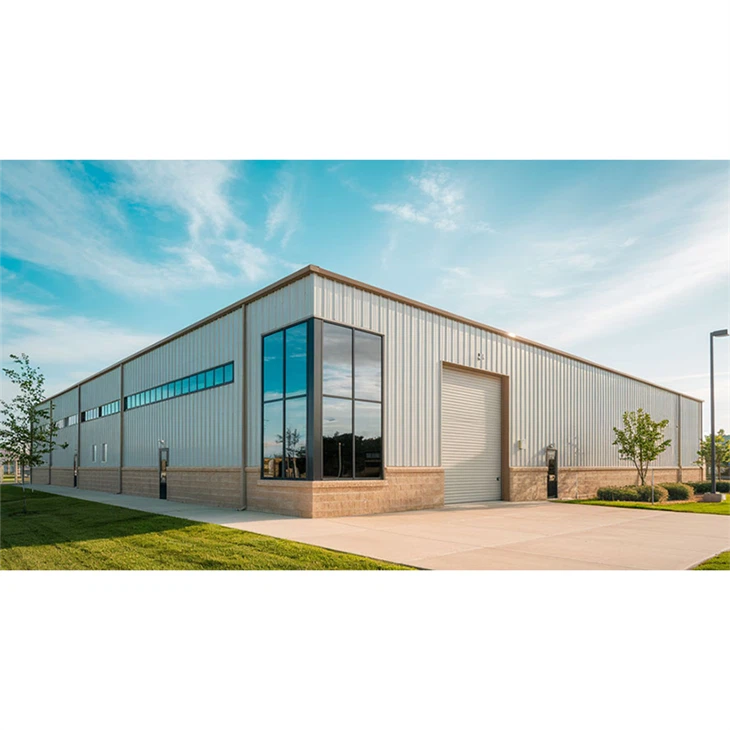

Modern Light-rigid Structure Workshop

Steel structures are one of the most common types of building structures due to their high strength, lightweight, excellent overall rigidity, and strong deformability. This makes them particularly suitable for large-span, super-high, and super-heavy buildings. Steel structures comprise steel beams, columns, trusses, and other components of section steel and steel plates, which are connected by welding, bolts, or rivets.





● Light weight

● Higher reliability of steel work

● anti-vibration (earthquake), impact and good

● Higher degree of industrialization

● Quickly assembled and accurately

● Large steel interior space

● Likely to cause sealing structure

● Steel corrosive

● Poor fire-resistant steel

● Recyclable steel

● Steel shorter duration

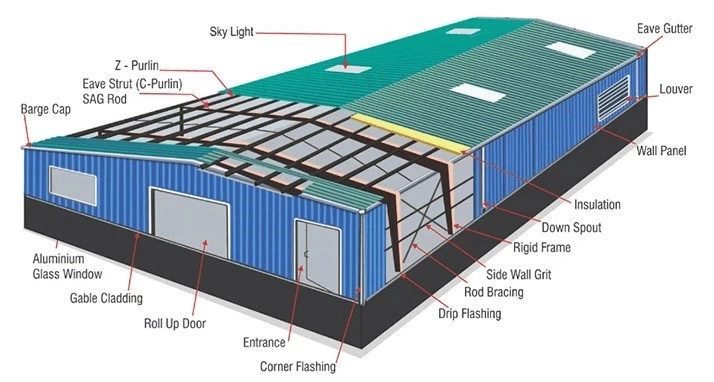

Steel structure building is a popular type of building system now, and its main load-bearing members are made of steel, including column, beam, foundation and roof truss, while roof and wall using variety of materials, such as sandwich panel, steel sheet, wire mesh, foam cement board, ALC board for different building application.



Name	Modern light-rigid structure workshop
Main Components	Base	Cement and steel foundation bolts
	Main frame	H beam
	Steel material	Structural steel Q235B, Q345B or others as buyers' requests.
	Purlin	C or Z purlin: Size from C120~C320, Z100~Z20
	Bracing	X-type or other type bracing made from angle, round pipe
	Bolt	Plain bolt and High-strength bolt
	Roof & wall	Sandwich panel or color corrugated steel sheet
	Door	Sliding door, roll-up shutter door or walk door
	Window	Aluminium alloy window
	Sheet	0.5mm or 0.6mm galvanized sheet
	Surface	Two lays of Anti-rust Painting or Hot Dip Galvanized
	Accessories	Semi-transparent skylight belts, Ventilators,down pipe, Glavanized gutter, etc
Packing	Main steel frame without packing load in 40' OT;
	Roof and wall panel load in 40' HQ!





The rigid frame structures can be classified into various categories, including single-span (represented by Figure a), double-span (depicted by Figure b), multi-span (represented by Figure c), cantilever steel frame (depicted by Figure d), and steel frames with adjacent frames (represented by Figure e). The connection between the columns and roof beams in multi-span rigid frames follows a hinged pattern. Single-slope roofs (illustrated by Figure f) are a common feature in these structures.









We have professional design teams, we can provide full detailed drawings based on your requirements; The software we use: Auto CAD, Tekla, PKPM, MTS, 3D3S, Tarch etc;





1. You are manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.

2. Can you send engineers or whole team to install my project?

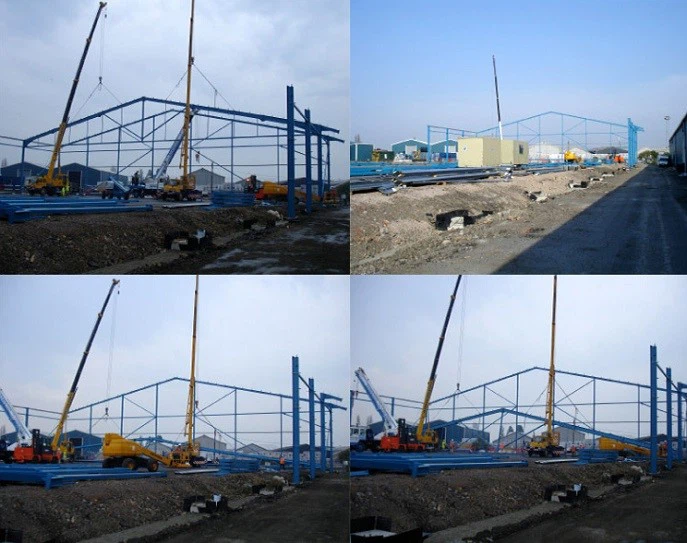

We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.

3. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.


4. How to get quotation?

In order to supply the most suitable drawing and best price for you, our design team need to confirm some information with you, as below:
1 Location (where will it be built? ) _____country, city_____
2 Size: Length*width*height _____mm*_____mm*_____mm
3 Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. Snow thickness)_____kn/m2, _____mm
5 Anti-earthquake grade_____
6 Brick wall needed or not. If yes, 1.2m high or 1.5m high?
7 Thermal insulation requirement. If yes, EPS/fiberglass wool/rock wool/PU sandwich panels will be suggested; If not, the metal steel sheets will be OK. The cost of the latter will be much lower than the former.
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not. If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
