Industrial Factory Workshop

We have over 10+ years in the construction of building materials, pre-engineered steel buildings.
* Offer a much cheaper price with advice to help you control and balance the budget with the design of the building, construction materials, minimizing the cost of delivery.

* Professional because of many experiences in designing buildings - manufacturing many construction works.

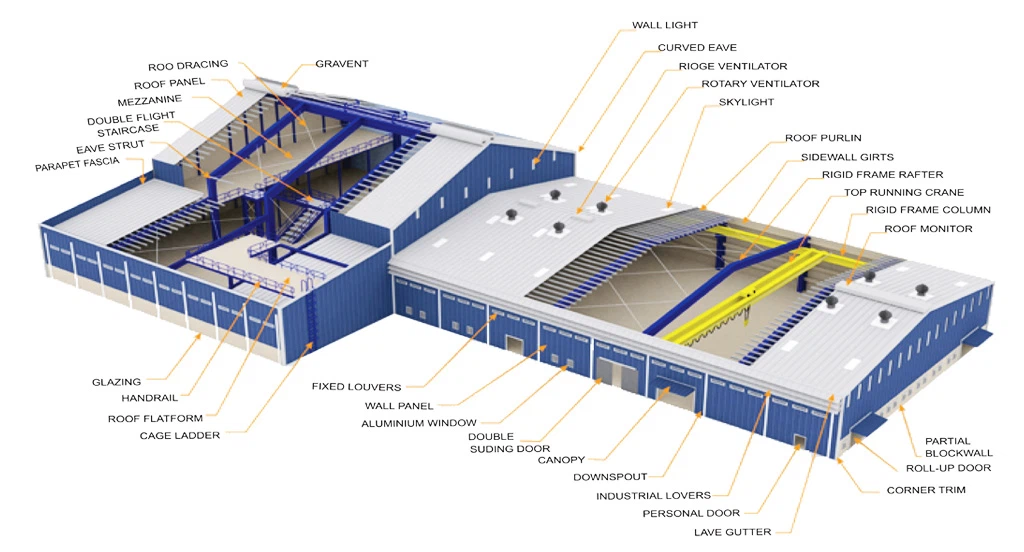

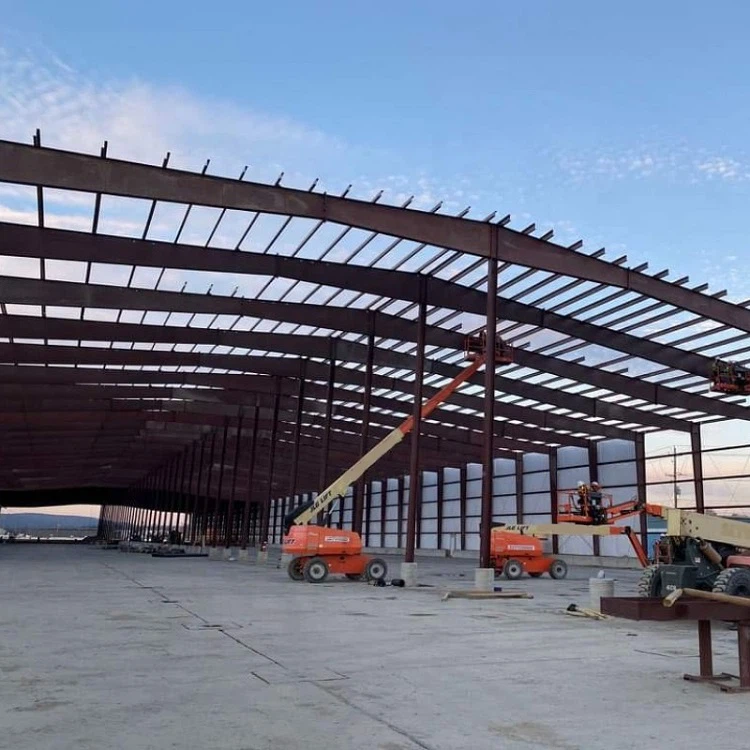

Compared with traditional buildings, steel structure building is a new building structure— the entire building made of steel. The structure mainly comprises steel beams, columns, trusses, and other parts made of section steel and steel plates. It is connected between parts and parts by welding, bolts, and rivets. The lightweight and simple structures are widely used in large factories, stadiums, super high-rise buildings, and other fields.







Item name	Industrial factory workshop
Main structure	Material	Q345B, Q235B
	Column and beam	Welded H section steel, Hot roll H section steel, Box column is also available, Circle column
	Surface processing	Paint or hot dip galvanized
	Connection	High strength bolt Grade 10.9s
Substructure	Purlin	C channel or Z channel, steel Q235B, galvanized
	Angle brace	L50x4, Steel Q235B, Paint or hot dip galvanized
	Cross bracing	Dia.20 round bar or L75x6 angle brace, Steel Q235B, Paint or hot dip galvanized
	Tie bar	Dia.76*2.5 - 121*3 round pipe, Steel Q235B, Paint or hot dip galvanized
	Purlin brace	Dia.12 round bar, Steel Q235B, Paint or hot dip galvanized
	Connection	Ordinary bolt
Roof and Wall	Panel	(50mm, 75mm, 100mm, 150mm) Sandwich panel or (0.3mm – 1.2mm) corrugated GI color steel sheet
	Transparent skylight	1.2mm FRP
	Accessories	Sealant, self-tapping screw, rivet etc.
	Edge cover	Made of color steel sheet
	Gutter	Made of steel sheet thickness 0.5mm
	Rainspout	PVC pipe
Others	Ventilator	Unpowered axial-flow ventilator, al fan or clerestory
	Door	Pedestrian door, rolling door/sliding door/ lifting door
	Window	plastic steel window, Alu. alloy window
	Crane	With or without crane, ranging from 2 tons to 20 tons







1. Customized Design

We have a professional design team. We can meet your individual needs. And customized color of steel components, roof and wall panels.



2. Shortest Delivery Time

We have 3 production lines with a total area of 250,000sqmtssquare meters factory building. Our output is Over 200,000 tons





Q1: How long can i get my building?

A: usually it takes about 30days to 50 days.



Q2: What are the benefits of steel construction?

A: All steel construction is build to very fast, these buildings are immune to termites. They are econmical and can be constructed faster than concrete buildings.



Q3: Why choose us?

A: We are your first priority. We don’t pull any gimmicks. We are veteran owned and operated business, unmatched in customer service. We have more than 10 years of metal building experience. We are also very reputable manufacture and can reply you questions regarding any tape of construction project. We care about your needs and value your business.



Q4: Do you offer designing service?

A: Yes, we could design full solution drawings as your requirements.we can design complex industrial buildings.



Q5: How about your quality control?

A: We have our own professional quality control team with rich experience and advanced inspection equipment. We are willing to accept the third inspection part to control.
