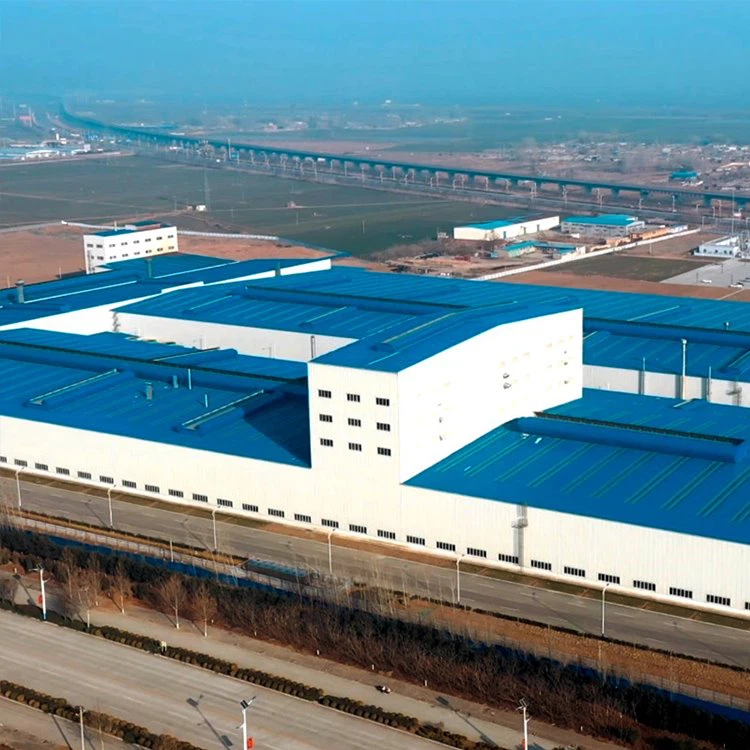

Multi Storied Workshop
Type: Light Frame, Steel Workshop
Warranty: 1 Year
After-sale Service: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection
Project Solution Capability: graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
Product Introduction
Essential details:
|
Type |
Light Frame, Steel Workshop |
|
Warranty |
1 Year |
|
After-sale Service |
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection |
|
Project Solution Capability |
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation |
|
Application |
workshop, Workshop; Warehouse; Garage;Hangar;Poultry House etc |
|
Place of Origin |
Shandong, China |
|
Brand Name |
RT |
|
Model Number |
A230505 |
|
Design Style |
Modern |
|
Main Structure |
steel column & steel beam |
|
Wall & Roof |
sandwich panel; color steel sheet |
|
Secondary Structure |
Purlin; Brace; Knee Brace etc |
|
Grade |
Steel Q345B (S355JR; ASTM 50Ksi); Q235B (S235JR) |
|
Cladding |
PU/ Rock Wool/ Fiberglass/ EPS |
|
Column & Beam Connection |
High Strength Bolt |
|
Accessories |
Skylight Belt; Ventilator; Downspout; Gutter etc |
|
Drawing Design |
AutoCAD PKPM 3D3S |
|
Supply Ability |
30000 Ton/Tons per Year |
Product Application:

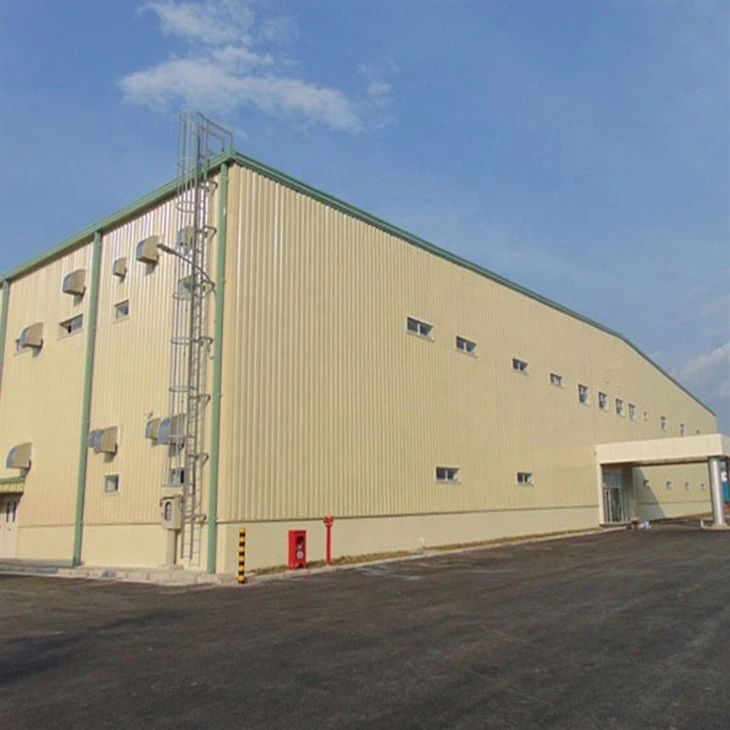

Prefabricated Steel Structure Workshop
Steel structure Buildings is widely used in production field, which is made from traditional concrete and brick building, it is has advantages of faster erection time, environmentally friendly, recycled used etc characteristics.
|
SPECIFICATION FOR STEEL STRUCTURE BUILDING |
||
|
Main Steel Frame |
Steel Column & Beam |
1. Material: Q345B (S355JR) or Q235B(S235JR) Welded/Hot Rolled H section steel |
|
2. Surface: Hot Dip Galvanized or Painted; |
||
|
3. Connection: All Bolts Connection; |
||
|
Supporting System |
Roof Purlin |
C or Z Section Steel, Q235B |
|
Wall Purlin |
C or Z Section Steel, Q235B |
|
|
Bracing |
Steel Rod, Q235B |
|
|
Cross Support |
Steel Rod, Q235B |
|
|
Column Support |
Angle Steel; Steel Rod; Q235B |
|
|
Angle Brace |
Angle steel, Q235B |
|
|
Tie Bar |
Steel Pipe, Q235B |
|
|

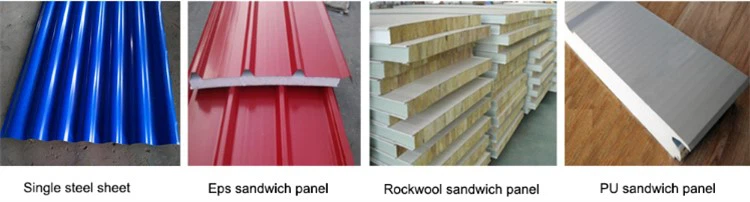

Roof & Wall System |
1. Single Colorful Corrugated Steel Sheet; |
|
|
2. Sandwich Panel with EPS, Rock Wool, Fiberglass, PU; |
||
|
Accessories |
Door |
Sliding; Rolled Up Door (Manual/Auto) |
|
Window |
Aluminum Alloy; PVC; |
|
|
Downspout |
PVC pipe; |
|
|
Gutter |
Galvanized Steel Sheet; Stainless Steel |
|
|
Ventilator |
Stainless Steel Turbine Ventilator |
|
|
Skylight Belt |
FRP or PC semi-transparent Skylight Belt |
|
|
Flash |
Color Steel Sheet |
|
|
Fittings |
Anchor Bolt; High Strength Bolt; Orindary Bolt, Self-tapping nail etc |
|
Main frame (column& beam)
Auxiliary system (wall& roof material)
Factory Introduction:

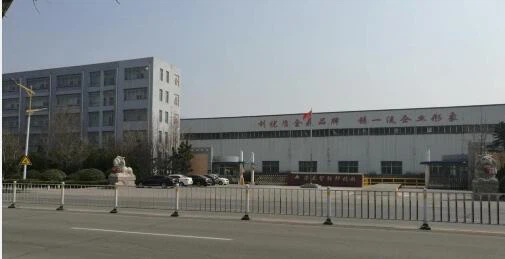

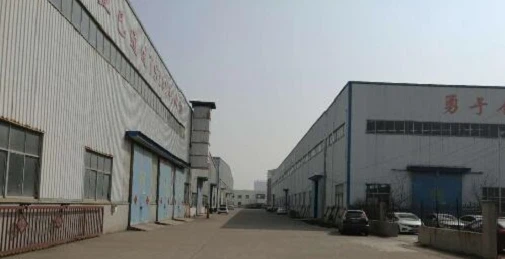

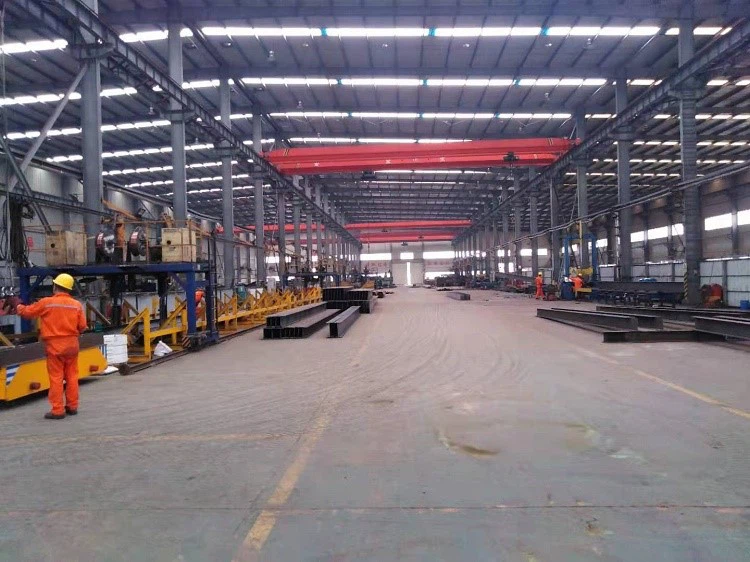

Qingdao RT Steel Structure Co. , Ltd. is located in Huangdao area of Qingdao City, nearby Qingdao port. it covers an area of 20 thousand square meters which is professional in scope of design, manufacture, installation of steel structure products. it has two professional production lines and the annual output reaches 10 thousand tons. it also owns professional design team, Two senior structural engineers, three senior architects, three senior engineers, sixty professional processing staff. The main business fieldand products of the company as follows. The design, production and installation of various industrial workshop, warehouse, garage, retail store, supermarket, stadium, chicken shed, cattle barn, pigsties, sheep shed, horse stables, frame steel structure building ect. Steel Structure Building Advantagesfast construction, easy installation, save time and laborlong life time more than 50 yearsprefabricated and customized designsstrong, stablity, durability and aesthetics. environmental friendly, can be recycled used. quake proof and water proof larger interior space. The company adheres to the idea of 'honesty and trust, customer first, quality priority', focus on details and pursue perfection. honest and trust, pragmatic and aggressive, efficient developmentOur Servicesinquiry and consulting support, providing professional suggestions. trial order is acceptable. welcome to our factory for further negotiation. professional designing and exact quotation. Perfect after service within 24hours. trainning installation. enineer available to service overseas according to ustomer requirement. Welcome the customers from all the world to contact us for future business cooperation and achieving mutual success.

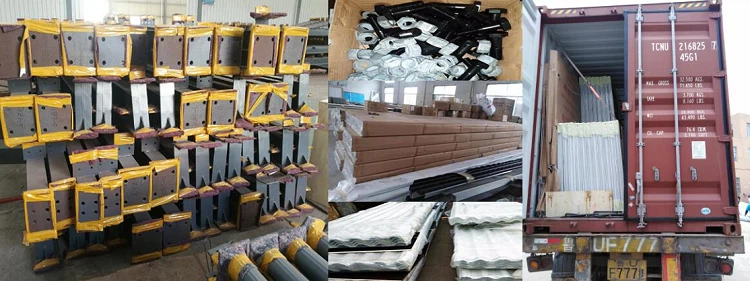

Packing & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Quote requirements:
|
Size: Length*width*height _____mm*_____mm*_____mm |
|
Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s |
|
Snow load (max. Snow height) _____kn/m2, _____mm |
|
Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels, Corrugated steel sheet with fiber glass wool will be suggested; If not, the Corrugated steel sheet will be ok. The cost of the latter will be much lower than that of the former. |
|
Door and window quantity & size _____units, _____(width)mm*_____(height)mm |
