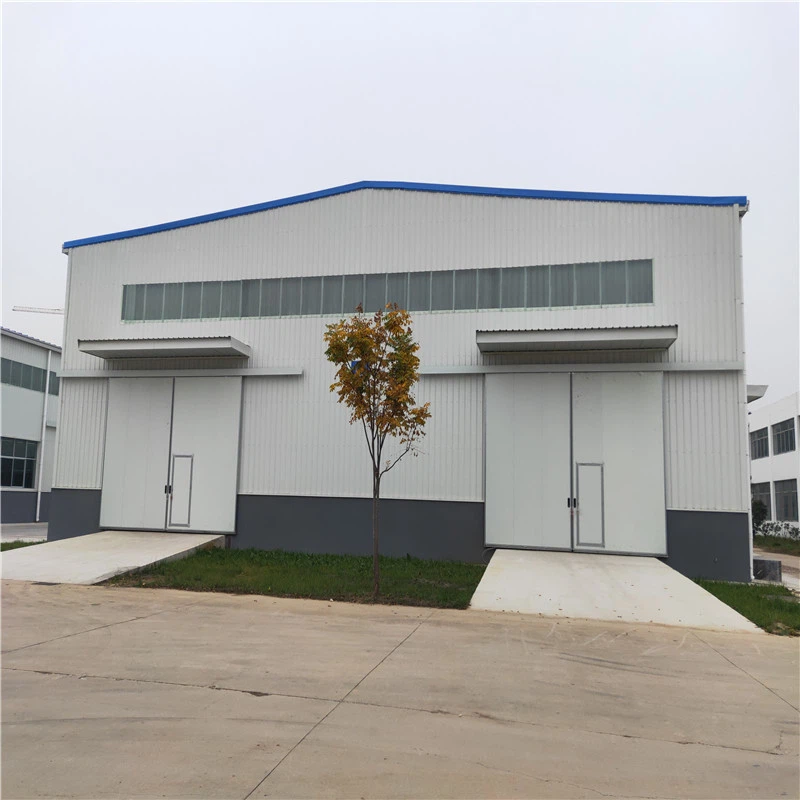

Steel Structure Factory Buildings

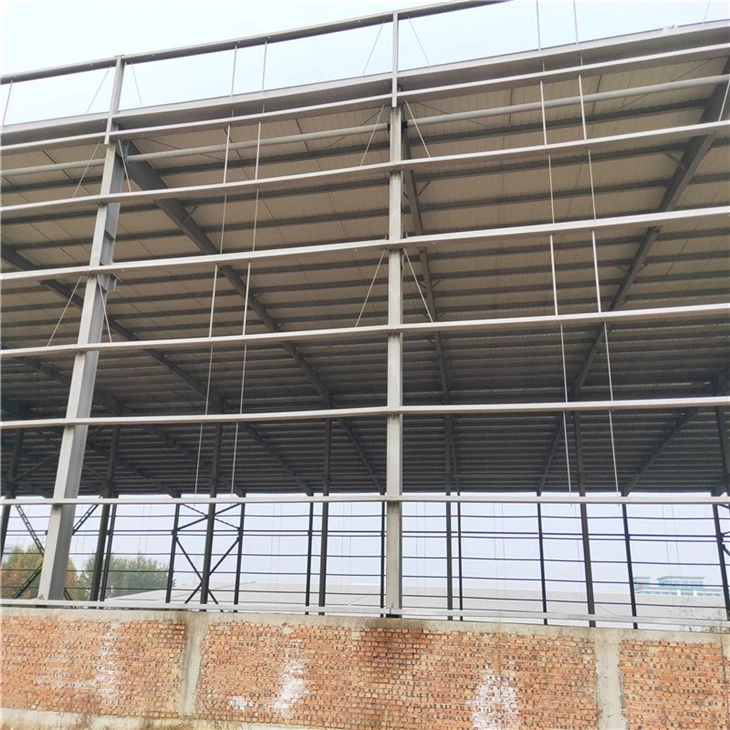

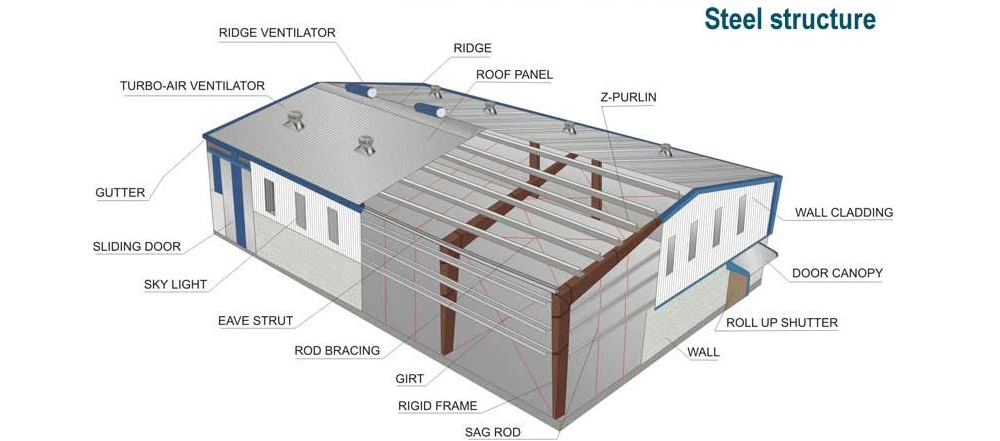

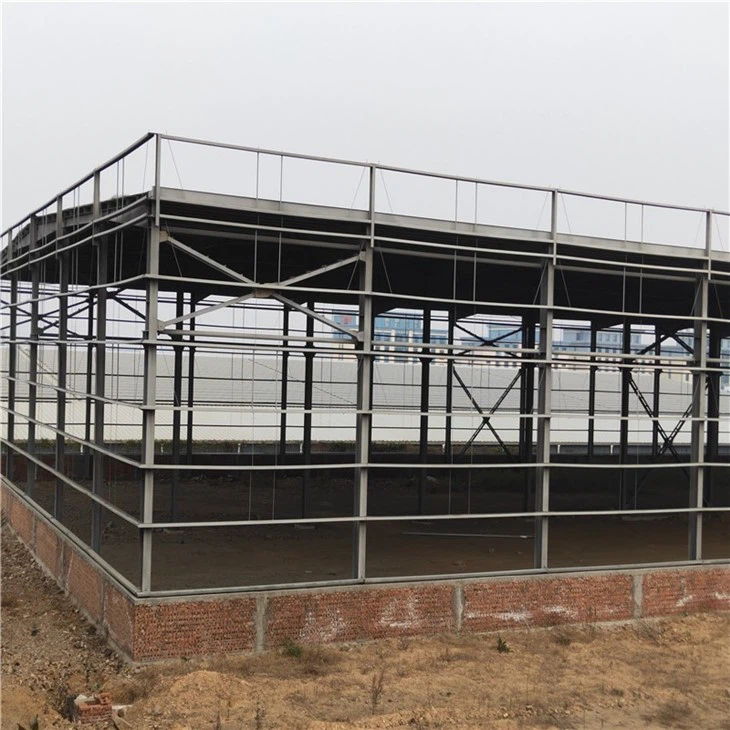

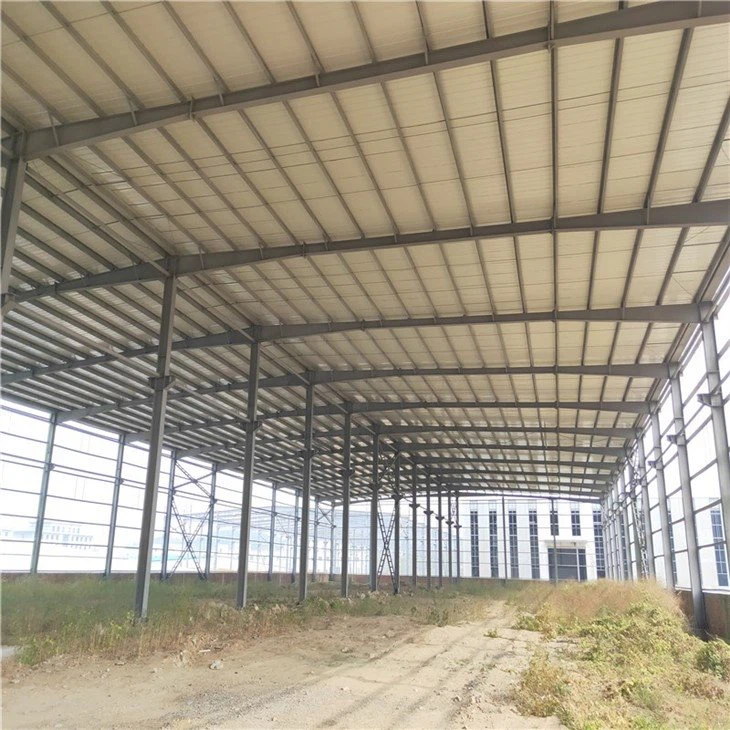

Prefab Steel structure factory buildings are made from steel structure systems, composed by H section steels for both columns and beams, and connected by high strength bolts for main steel structures. And cladding systems like sandwich panels or corrugated steel sheets are connected to the main steel structure by steel purlins. Ventilators are used for fresh air to come and sunlight panels and windows used for light to come in. For steel structure factory workshops, overhead crane will be adopted for lifting heavy steel materials, then matching with doors and windows, to form a finished building.





Prefab Steel structure building is called 21^st century "Eco Friendly Building", its advantages as below:

1. Fast Construction and Easy Installation; Save time and Labor;

2. Long Life Time Over 50 years;

3. Prefabricated and Customized Design;

4. Strong, stability, Durability and Aesthetics;

5. Environmental friendly, can be recycled used;

6. Quake Resistant; Water Proof;

7. Larger Interior Space;

8. Lower Maintenance Cost;

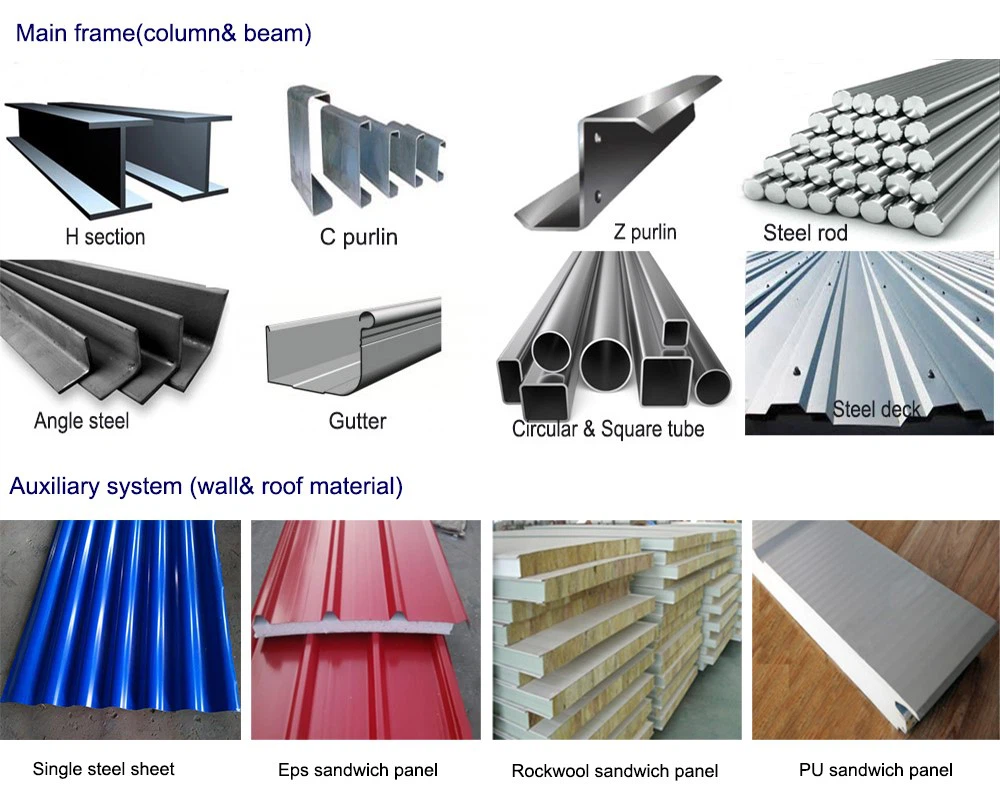

Main Steel Frame	H section steel beam and columns

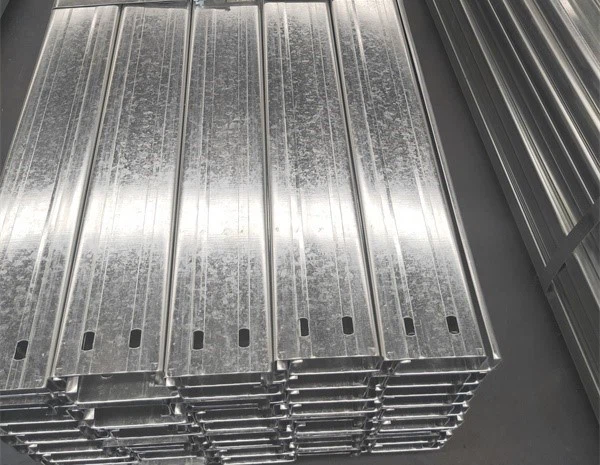

Secondary Frame	hot dip galvanized C purlin, steel bracing, tie bar, knee brace, edge cover etc.
Roof Panel & Wall panel	Single Corrugated Steel Sheet or PU/ EPS/ Fiberglass/ Rockwool Sandwich Panel
Ventilation System	Turbine Ventilator; Ridge Ventilator; Windows, Doors
Lighting System	FRP Skylight Belt; PC Hollow Sunshine Board;
Accessories	High Strength Bolt; Ordinary Bolt; Self tapping nail etc;



Cladding material is mainly including PU sandwich panel, Rockwool sandwich panel, fiberglass sandwich panel, EPS sandwich panel, Double steel sheet plus fiberglass roll, color steel sheet, they are widely used as roof panel and wall panel.

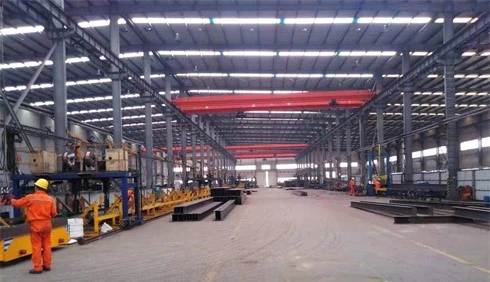

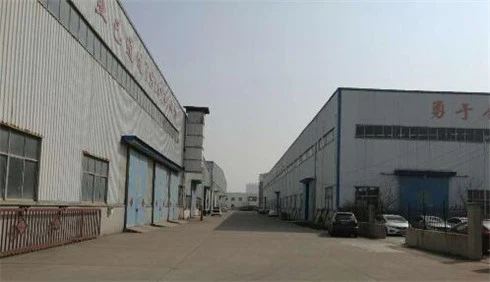

Qingdao RT Steel Structure Co., Ltd. is located in Huangdao district of Qingdao City, very near to Qingdao port. It covers an area of 20 thousand square meters, and engaged in prefab steel structure buildings design and fabrication.

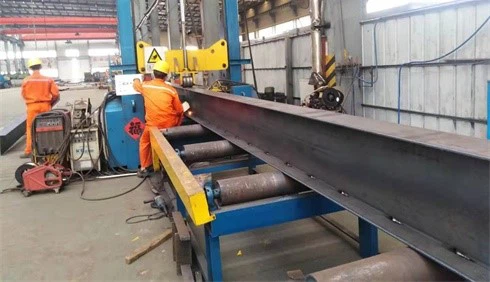

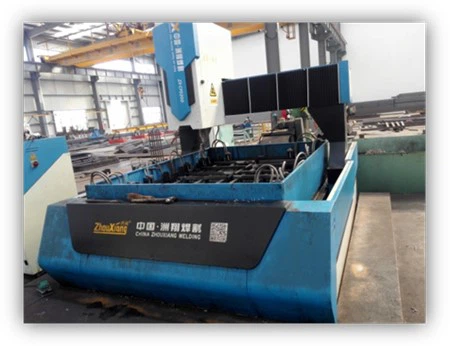

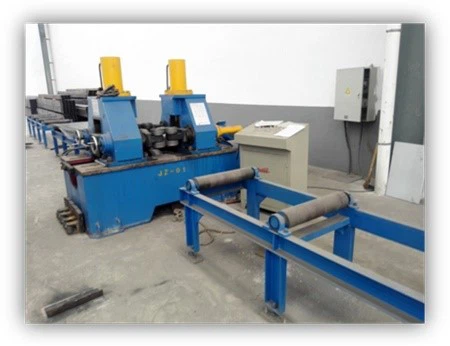

We have two professional production lines and with annual production capacity 40 thousand tons. And pass the approval of ISO and CE. The products has been exported to Canada, United States, Sweden, Hungary, Australia, Chile, Argentina, Panama, Uruguay, Guyana, Philippines, Uzbekistan, Ivory Coast, Ghana, Gambia, Congo, Tanzania, Mauritius, Ethiopia, Fiji etc more than 30 countries;

Our factory adheres to the principle of Quality Priority, we welcome clients all over the world to contact us for cooperation of building new steel structure buildings!

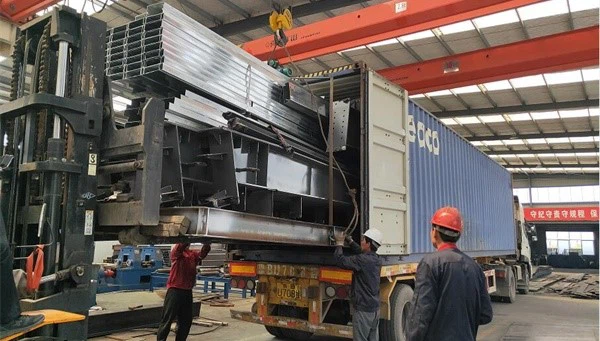

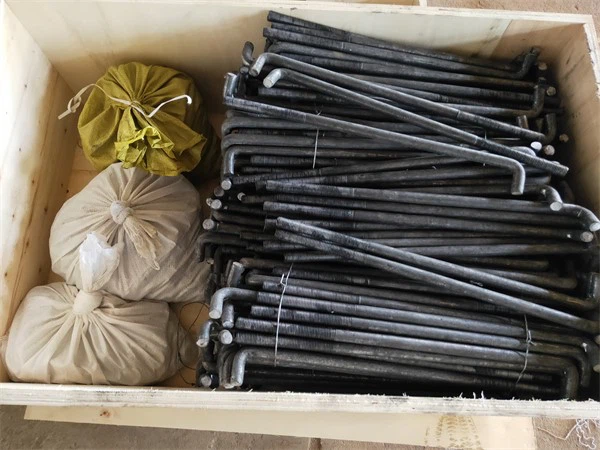

In order to protect the cargos and avoid damage during transportation, the cargo are all well packed; As to the frame steel stucture, the edge is well wrapped by fabric cloths, the purlins are bundles, and color steel sheet is well packed by kraft paper, as to the accessories and small spart parts are put into plywood board;

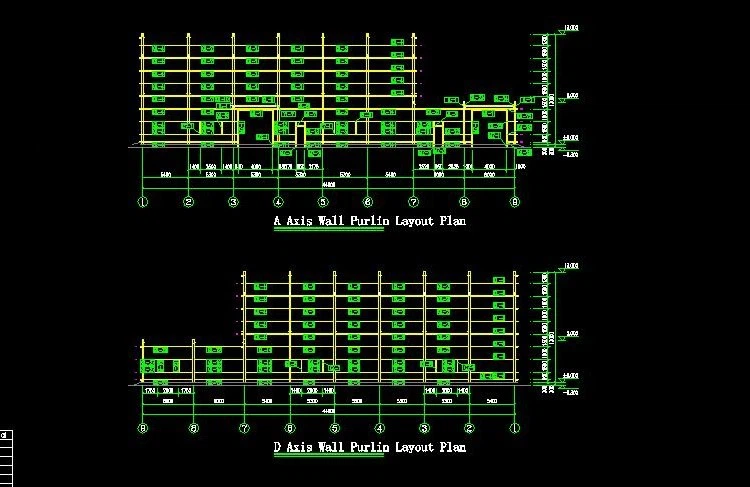

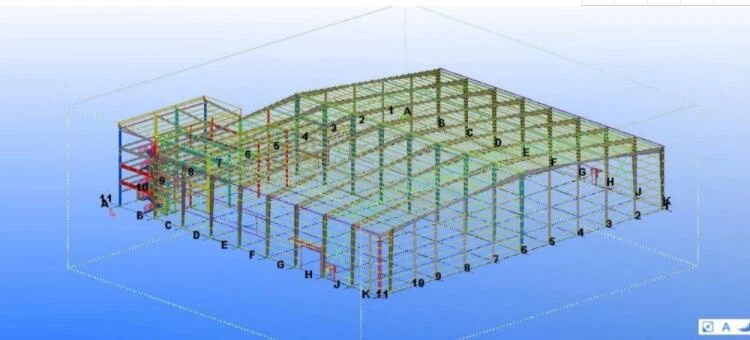

We have professional design teams, we can provide full detailed drawings based on your requirements; The software we use :Auto CAD, Tekla, PKPM, MTS, 3D3S, Tarch etc;





1st Option: Drawing Available Based on your drawing, we can provide accurate quotation to you;

2nd Option: Drawing Unavailable We have professional design teams, will provide professional drawing to you if you can provide below info:

1. Location: ______ Country, ______Area

Application: Workshop; warehouse; poultry shed etc

3. Size (Length*width*eave height): _______mm*_______mm*______mm

4. Wind Load(max.): ______km/h; or ______m/s

5. Snow Load(max.): ______kn/m2

6. Earthquake Magnitude: ______level;

7. Insulation Material: Corrugated steel sheet or sandwich panel (PU/EPS/Rock wool/Fiberglass)

8. Brick wall: whether available and its height

9. Door & Window: Dimension, quantity, installation position

10. Crane: if need to install crane, pls inform the max. lifting weight; max. lifting height
