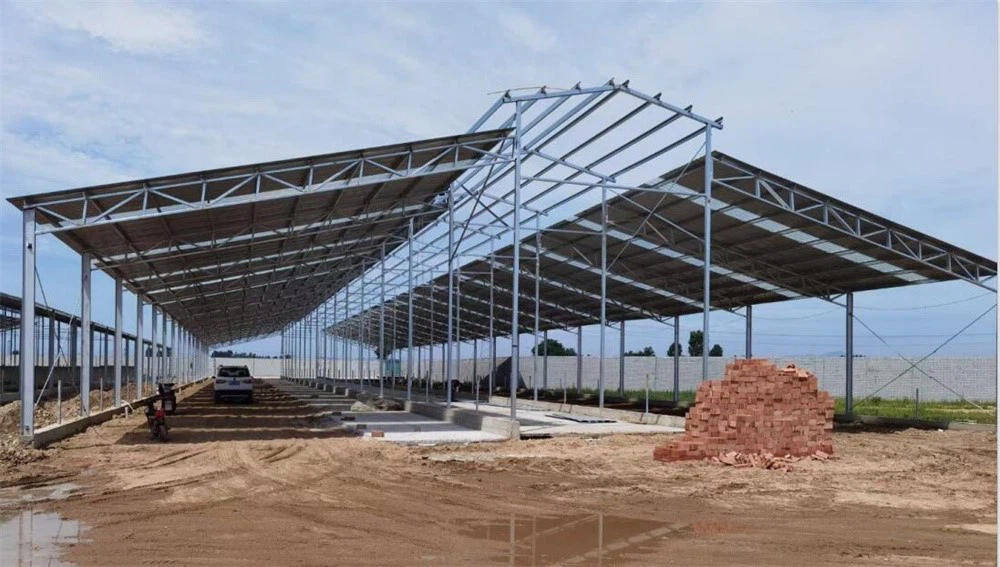

Steel Structure Dairy Cattle Barns
Steel Structure Dairy Farm, Cattle Shed, Cow Barn, is a modern building for cow cattle, beef cattles etc.
It use H steel as column and beam, supporting by C/Z purlins, tie rod, X brace etc, and wall and roof are covering by color steel sheet or Insulated sandwich panel (PU/EPS/Rockwool.Fiberglass).
Product Introduction
Product Application
Steel Structure Dairy Farm, Cattle Shed, Cow Barn, is a modern building for cow cattle, beef cattles etc.
It use H steel as column and beam, supporting by C/Z purlins, tie rod, X brace etc, and wall and roof are covering by color steel sheet or Insulated sandwich panel (PU/EPS/Rockwool. Fiberglass). It has the advantage of shorter building time, eco friendly and modern design, lower investment etc comparing with tradtional concrete building.
A: Components of galvanized light steel structure
1) Wall panel: sandwich panel with color steel two sides and EPS foam filling width: 1200mm 1k=1200
2) Column: C style steel, H shape
3) Floor beam: C style steel, 200*40*2.0mm
4) Floor: light magnesium board (our patent)
5) Stair: metal
6) Roof truss: angle steel
7) Purling tube metal
8) Roof panel: corrugated sandwich panel with color steel two sides
9) Door: aluminum frame with panel same as wall, with lock
Remark: this list is for your reference but the elements can vary.
Technique Index
Earthquake resistante: 8 fission intensity
Wind pressure: <31m/s about 10 grade
Roofing snow load: <80kg/m2
Roofing live load: 50kg/m2
B: The advantages of light steel structure
1) Economic: quick installed and saving the cost of construction
2) Reliable quality: mainly produced in the factory and control the quality
3) Big space: the max span of prefab steel structure can reach 80meters
4) Antiseismic: because the weight is light
5) Beautiful appearance: can use different colors
6) Long lifespan: can be used more than 50 years

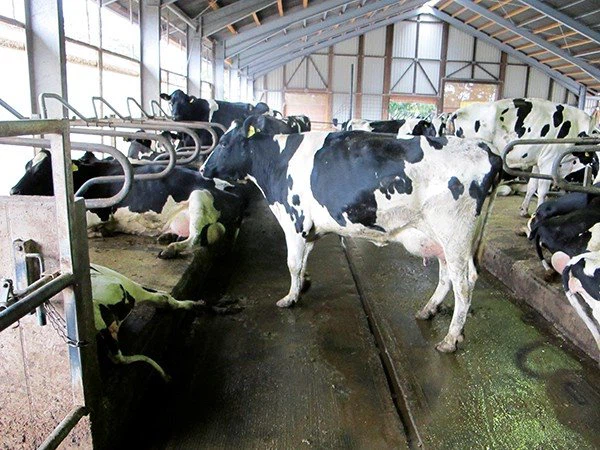

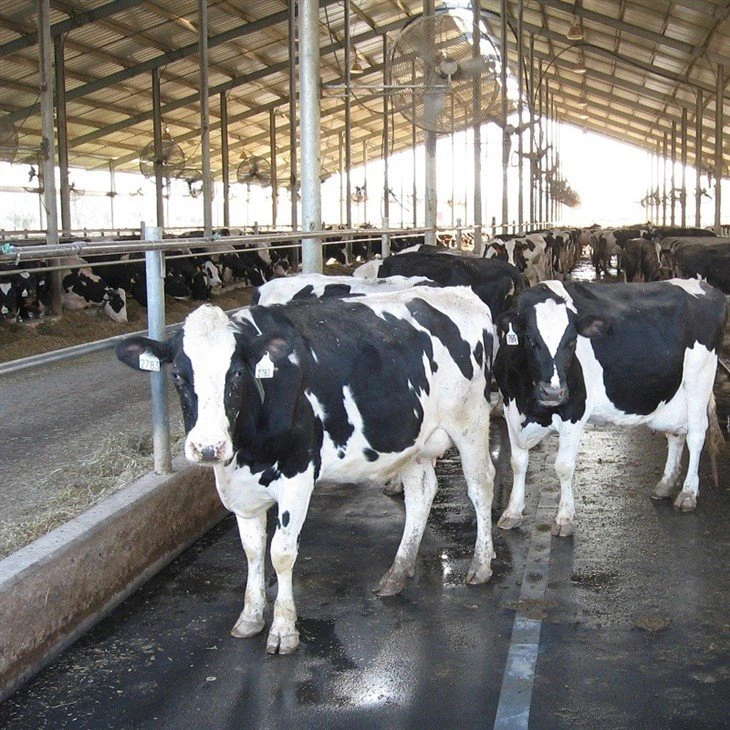

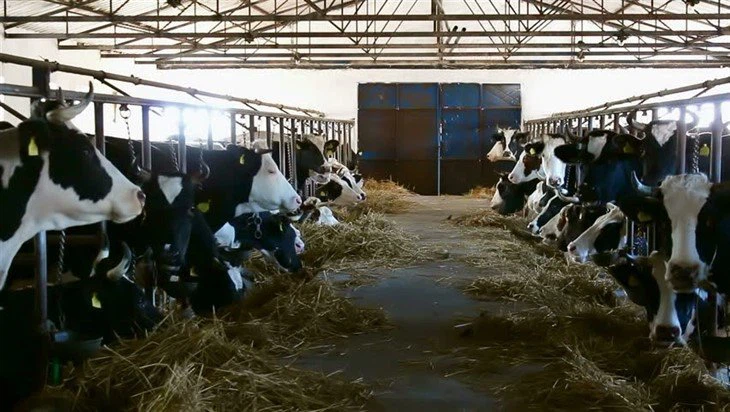

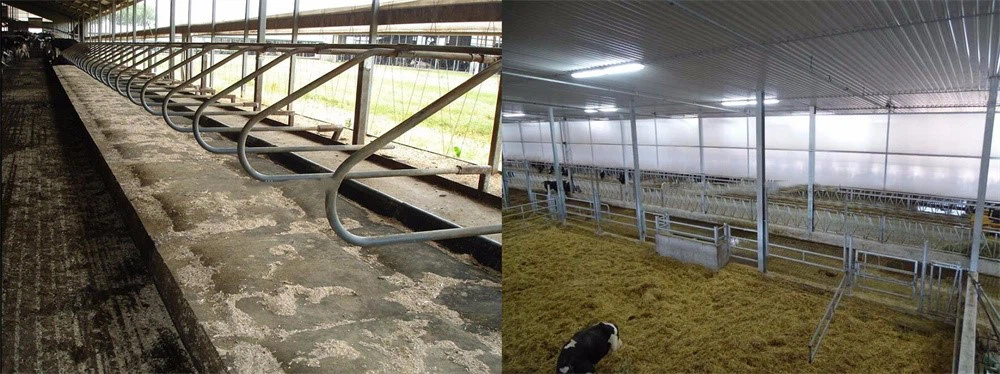

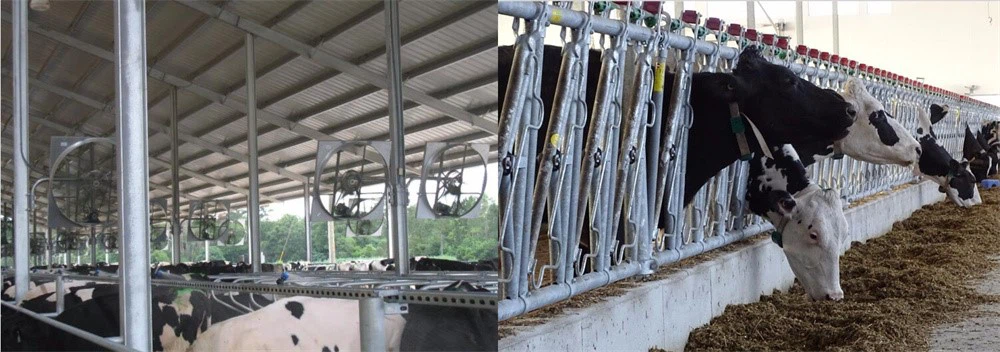

Detail Photos:

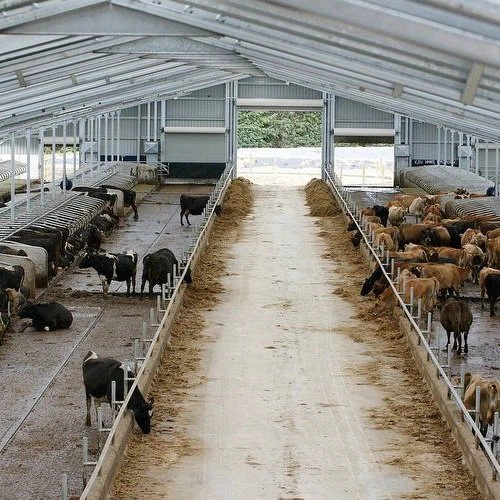

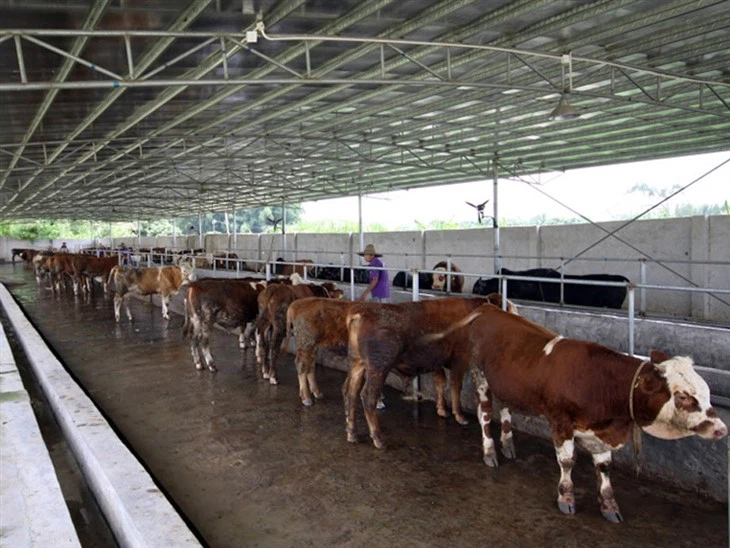

Customer Photos:
Our service:
3D model.
3D building information modeling software used in the building and construction industries for steel and concrete detailing, we make this model for customer to create and manage 3D structural models in concrete or steel, and guides them through the process from concept to fabrication.
Foundation plan.
We provide foundation plan for your project for free. Please just make local geological report
If you need, we would love to send the anchor bolts and mold. Before the production work finish, you can do the foundation work first.
