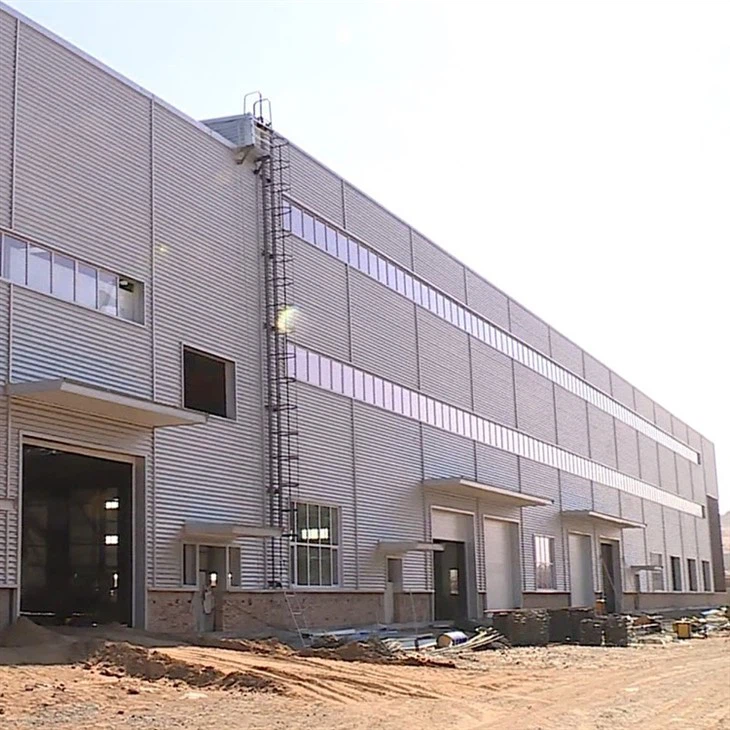

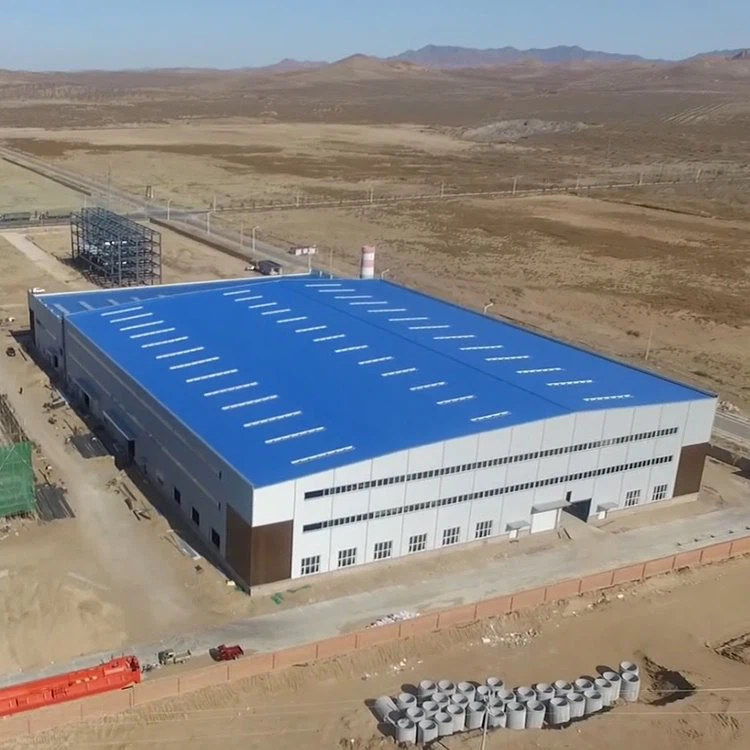

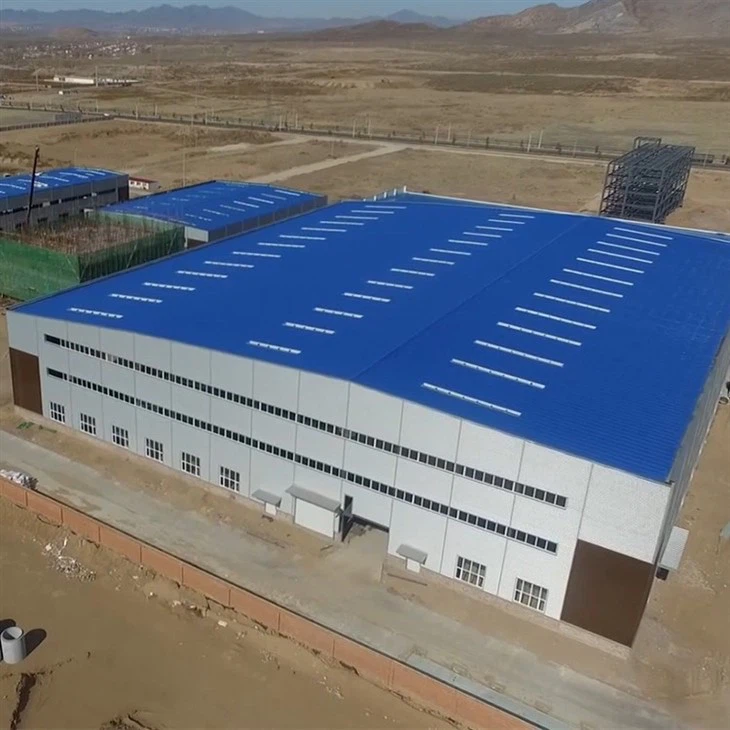

Steel Structure Frame Warehouse
1. Material: Q345B (S355JR) or Q235B(S235JR)Welded/Hot Rolled H section steel
2. Surface: Hot Dip Galvanized or Painted;
3. Connection: All Bolts Connection;
Product Introduction
|
SPECIFICATION FOR STEEL STRUCTURE BUILDING |
||
|

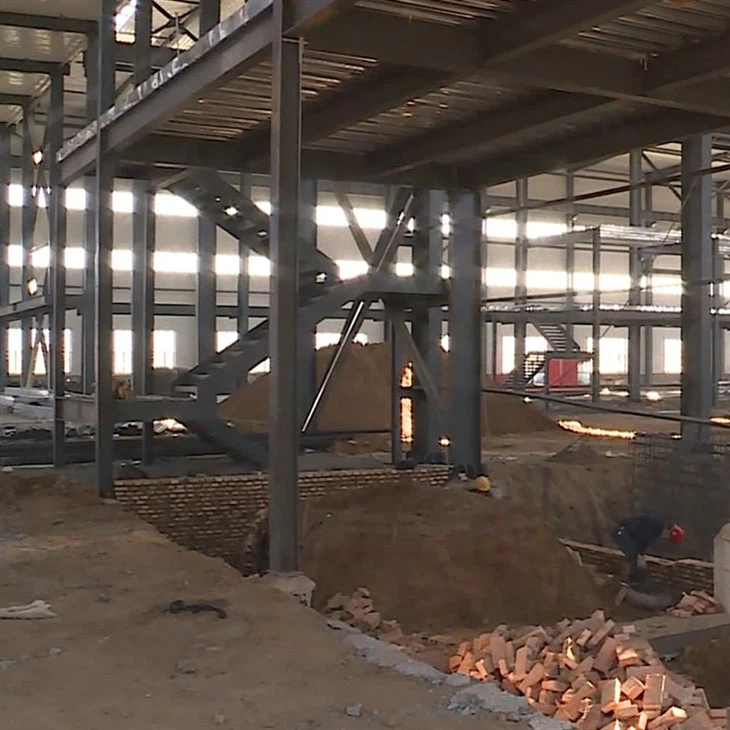

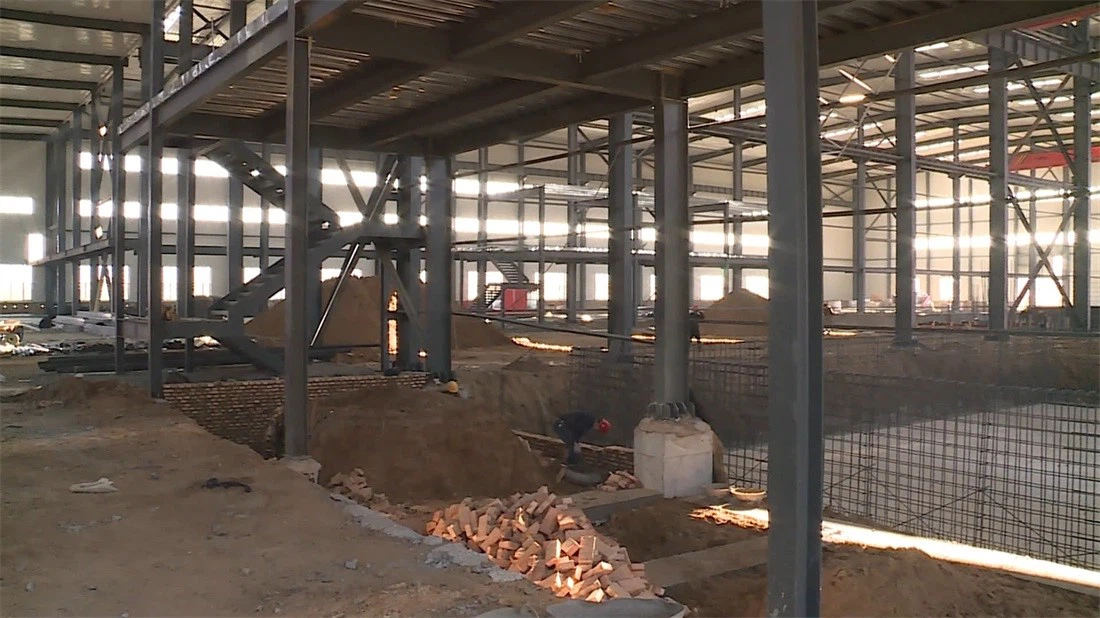

Main Steel Frame |
Steel Column & Beam |
1. Material: Q345B (S355JR) or Q235B(S235JR) |
|
2. Surface: Hot Dip Galvanized or Painted; |
||
|
3. Connection: All Bolts Connection; |
||
|
Supporting System |
Roof Purlin |
C or Z Section Steel, Q235B |
|
Wall Purlin |
C or Z Section Steel, Q235B |
|
|
Bracing |
Steel Rod, Q235B |
|
|
Cross Support |
Steel Rod, Q235B |
|
|
Column Support |
Angle Steel; Steel Rod; Q235B |
|
|
Angle Brace |
Angle steel, Q235B |
|
|
Tie Bar |
Steel Pipe, Q235B |
|
|
Roof & Wall System |
1. Single Colorful Corrugated Steel Sheet; |
|
|
2. Sandwich Panel with EPS, Rock Wool, Fiberglass, PU; |
||
|
Accessories |
Door |
Sliding; Rolled Up Door (Manual/Auto) |
|
Window |
Aluminum Alloy; PVC; |
|
|
Downspout |
PVC pipe; |
|
|
Gutter |
Galvanized Steel Sheet; Stainless Steel |
|
|
Ventilator |
Stainless Steel Turbine Ventilator |
|
|
Skylight Belt |
FRP or PC semi-transparent Skylight Belt |
|
|
Flash |
Color Steel Sheet |
|
|
Fittings |
Anchor Bolt; High Strength Bolt; Orindary Bolt, Self-tapping nail etc |
|
Specification:
|
column and beam |
material Q355 H section steel (painted or galvanized) |
|
surface treatment |
galvanized or painted |
|
wall&roof purlin |
c or z section steel |
|
wall&roof panel |
colorful corrugated steel sheet, sandwich panels with eps, rockwool, fiber glass, pu etc. |
|
support |
steel angle, steel pipe, steel round. |
|
gutter |
steel sheet or galvanized steel sheet |
|
downpipe |
pvc pipe |
|
door |
sliding sandwich panel door or rolling metal door |
|
window |
pvc or aluminum alloy windows |
|
accessory |
anchor bolt, high strengthen bolt, normal Bolt, skylight Belts, ventilators, etc. |
Our Service:
|
Free Designing Service |
We have professional design teams, we can provide full detailed drawings based on your requirements; The software we use: Auto CAD, Tekla, PKPM, MTS, 3D3S, Tarch etc; |
|
Quality Control & Quality Assurance Service |
Since raw material, each processing procedure, finished products; every procedure, we have professional quality control staff to test the quality; ensure each procedure finished product is qualified, so the final finished product quality is highly guaranteed; |
|
Installation Service |
Since raw material, each processing procedure, finished products; every procedure, we have professional quality control staff to test the quality; ensure each procedure finished product is qualified, so the final finished product quality is highly guaranteed; |
Packing & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Quote requirements:
|
Size: Length*width*height _____mm* _____mm* _____mm |
|
Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s |
|
Snow load (max. Snow height) _____kn/m2, _____mm |
|
Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels, Corrugated steel sheet with fiber glass wool will be suggested; If not, the Corrugated steel sheet will be ok. The cost of the latter will be much lower than that of the former. |
|
Door and window quantity & size _____units, _____(width)mm* _____(height)mm |
