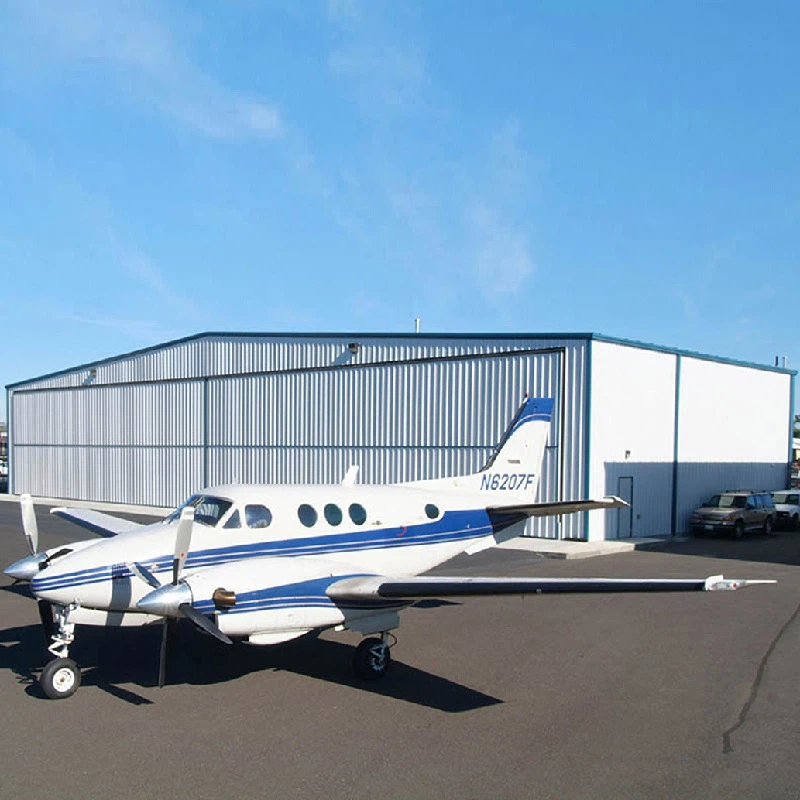

Steel Hangar Construction

Product Introduction

Essential details:

Type	Steel hangar construction
Warranty	1 Year
After-sale Service	Online technical support, Onsite Installation, Onsite Training, Onsite Inspection
Project Solution Capability	graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
Application	workshop, Workshop; Warehouse; Steel hangar construction etc.
Place of Origin	Shandong, China
Brand Name	RT
Main Structure	steel column & steel beam
Wall & Roof	sandwich panel; color steel sheet
Secondary Structure	Purlin; Brace; Knee Brace etc
Grade	Steel Q355B (S355JR; ASTM 50Ksi);Q235B (S235JR)
Cladding	PU/Rock Wool/Fiberglass/EPS
Column & Beam Connection	High Strength Bolt
Accessories	Skylight Belt; Ventilator; Downspout;Gutter etc

What is prefabricated steel structure building?

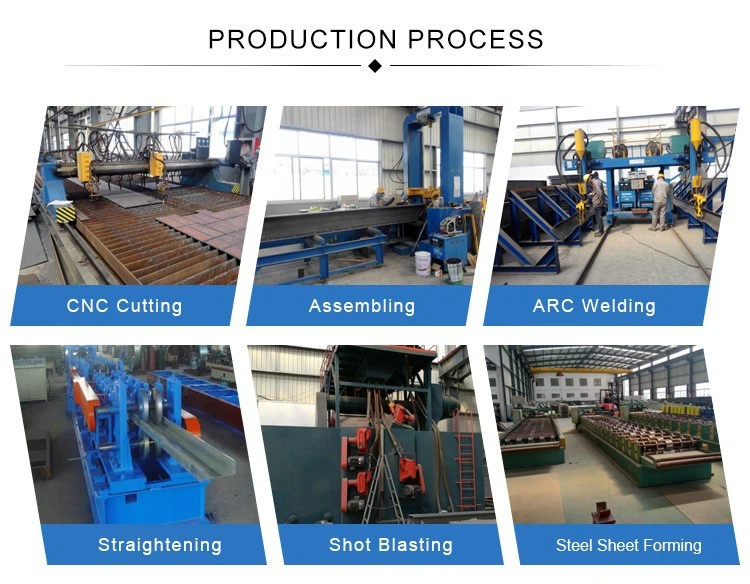

Steel structure building is built over three members connected to each other by bolts and screws: Primary members (columns, beams) Steel columns will be H section steel, square tube steel according to different type of buildings. Steel beams are usually H section steel. Secondary members (C or Z purlins, bracing...) Roof and wall sheeting or sandwich panel (EPS, fiberglass wool, PU sandwich panel) Other building components (Rolling doors, aluminium windows, etc.) The entire primary members and secondary members are designed and fully fabricated including cut-to-length, punching, drilling, welding and performing in the factory before shipping to the site for erection. At the site, all components are assembled and jointed via nut & bolt connections; thereby reducing the costs and assembly times. These buildings can be provided with different structural and non-structural additions such as ventilators, doors & windows, trusses, mezzanine floors, canopies, crane, insulation…, based on the customer's requirements.

SPECIFICATION FOR STEEL STRUCTURE BUILDING
Main Steel Frame	Steel Column & Beam	1. Material: Q355B (S355JR) or Q235B(S235JR) Welded/Hot Rolled H section steel
		2. Surface: Hot Dip Galvanized or Painted;
		3. Connection: All Bolts Connection;
Supporting System	Roof Purlin	C or Z Section Steel, Q235B
	Wall Purlin	C or Z Section Steel, Q235B
	Bracing	Steel Rod, Q235B
	Cross Support	Steel Rod, Q235B
	Column Support	Angle Steel; Steel Rod; Q235B
	Angle Brace	Angle steel,Q235B
	Tie Bar	Steel Pipe,Q235B
	Roof & Wall System	1. Single Colorful Corrugated Steel Sheet; Thickness: 0.3-0.8mm
	Roof & Wall System	2. Sandwich Panel with EPS, Rock Wool, Fiberglass, PU; Thickness: 50-150mm;
Accessories	Door	Sliding; Rolled Up Door (Manual/Auto)
	Window	Aluminum Alloy; PVC;
	Downspout	PVC pipe;
	Gutter	Galvanized Steel Sheet; Stainless Steel
	Ventilator	Stainless Steel Turbine Ventilator
	Skylight Belt	FRP or PC semi-transparent Skylight Belt
	Flash	Color Steel Sheet
	Fittings	Anchor Bolt; High Strength Bolt; Orindary Bolt, Self-tapping nail etc

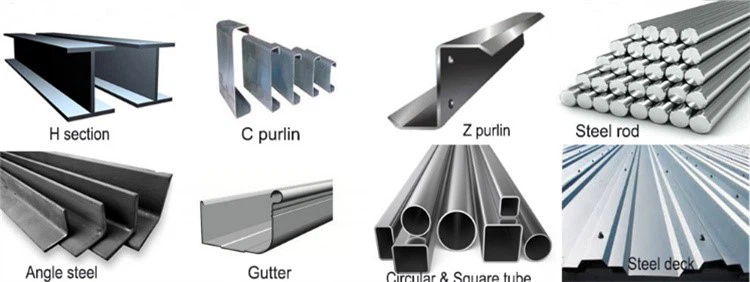

Main frame(column& beam)

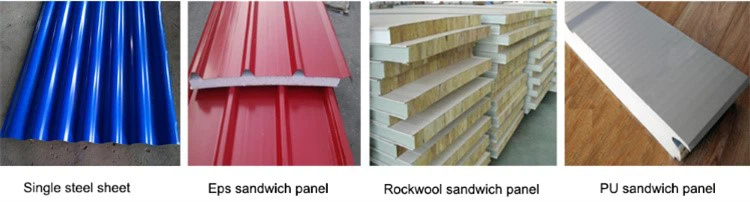

Auxiliary system (wall& roof material)

Factory Introduction:

Factories covers an area of 20 thousand square meters which is specialized in designing,manufacturing and installation of steel structure products.The company has two professional production lines, the annual output reaches 30 thousand tons.It also owns professional design team,two senior structural engineers, three senior architects, three senior engineers, sixty professional processing staffs. Our company has three-grade steel structure construction qualification and passed the ISO9000 international systems Certifications.
