Exclusive Steel Structure Design Scheme
Primary frame element such as steel columns, steel beams and other members are made by hot-galvanized or paint hot-rolled H section steels and welded section steel, which will be bolted together at site. A factory galvanization or paint surface treatment is applied to get better anti-rusting and anticorrosion effect of primary framing elements.
Product Introduction
Steel structure
Primary frame element such as steel columns, steel beams and other members are made by hot-galvanized or paint hot-rolled H section steels and welded section steel, which will be bolted together at site. A factory galvanization or paint surface treatment is applied to get better anti-rusting and anticorrosion effect of primary framing elements.
Secondary Framing- Galvanized purlin, tie bar, roof and wall support, are formed as secondary framing.
Bracing- Round steel is supplied with knee bracing and other supporting parts that need portal framing, which will improve the stability and durability of the whole structural building.
Cladding
Roof and Wall are covering of color-coated corrugated steel sheet, hot dipped with zinc and aluminum compound, which is fixed to the outside of structural building to protect it against bad weather or to have a good appearance.
Product Application:

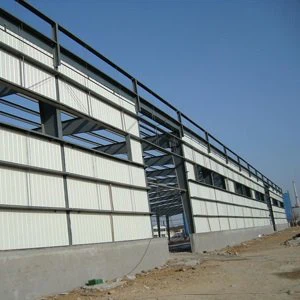

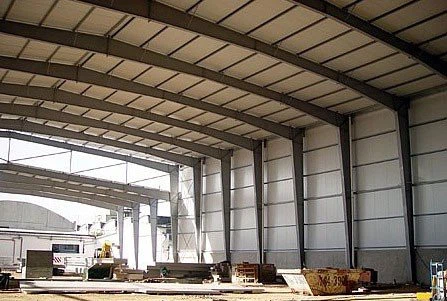

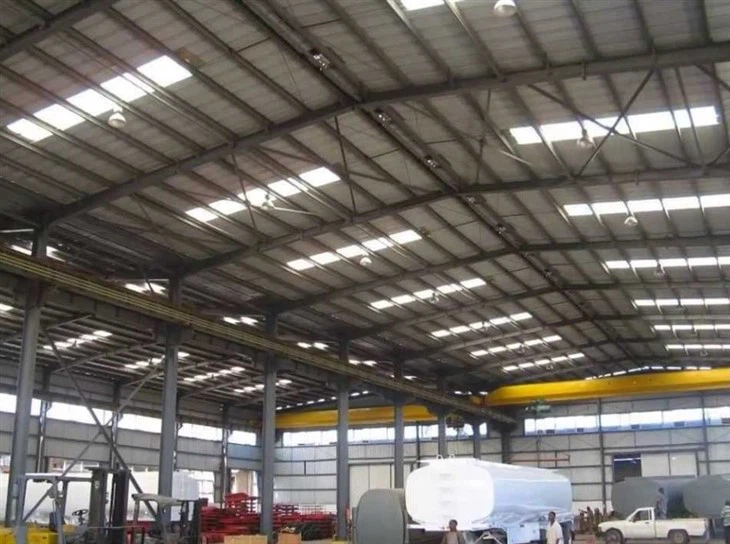

Prefabricated Steel Structure Workshop
Steel structure Buildings is widely used in production field, which is made from traditional concrete and brick building, it is has advantages of faster erection time, environmentally friendly, recycled used etc characteristics.
|

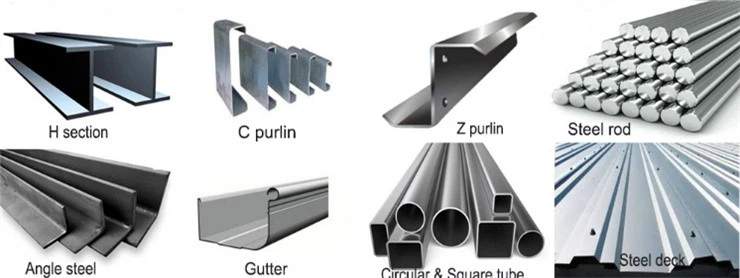

SPECIFICATION FOR STEEL STRUCTURE BUILDING |
||
|
Main Steel Frame |
Steel Column & Beam |
1. Material: Q345B (S355JR) or Q235B(S235JR) Welded/Hot Rolled H section steel |
|
2. Surface: Hot Dip Galvanized or Painted; |
||
|
3. Connection: All Bolts Connection; |
||
|
Supporting System |
Roof Purlin |
C or Z Section Steel, Q235B |
|
Wall Purlin |
C or Z Section Steel, Q235B |
|
|
Bracing |
Steel Rod, Q235B |
|
|
Cross Support |
Steel Rod, Q235B |
|
|
Column Support |
Angle Steel; Steel Rod; Q235B |
|
|
Angle Brace |
Angle steel, Q235B |
|
|
Tie Bar |
Steel Pipe, Q235B |
|
|

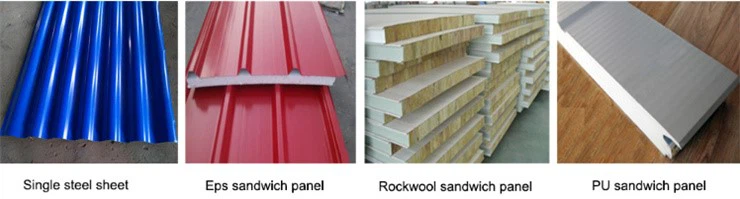

Roof & Wall System |
1. Single Colorful Corrugated Steel Sheet; |
|
|
2. Sandwich Panel with EPS, Rock Wool, Fiberglass, PU; |
||
|
Accessories |
Door |
Sliding; Rolled Up Door (Manual/Auto) |
|
Window |
Aluminum Alloy; PVC; |
|
|
Downspout |
PVC pipe; |
|
|
Gutter |
Galvanized Steel Sheet; Stainless Steel |
|
|
Ventilator |
Stainless Steel Turbine Ventilator |
|
|
Skylight Belt |
FRP or PC semi-transparent Skylight Belt |
|
|
Flash |
Color Steel Sheet |
|
|
Fittings |
Anchor Bolt; High Strength Bolt; Orindary Bolt, Self-tapping nail etc |
|

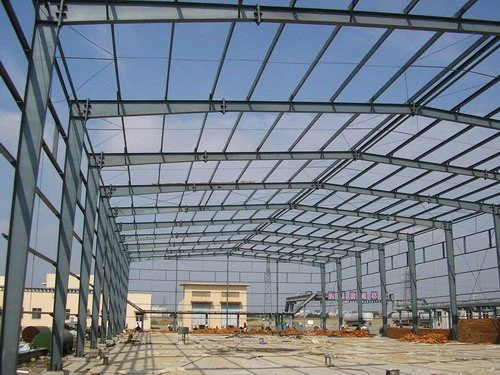

Main frame(column& beam)
Auxiliary system (wall& roof material)

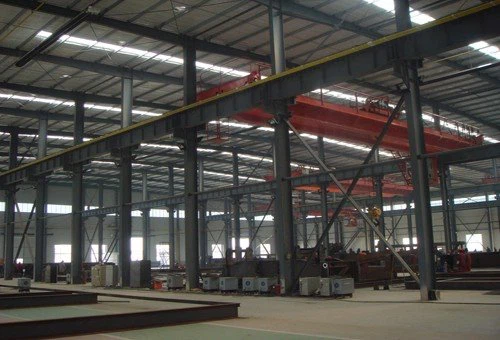

Factory Introduction:

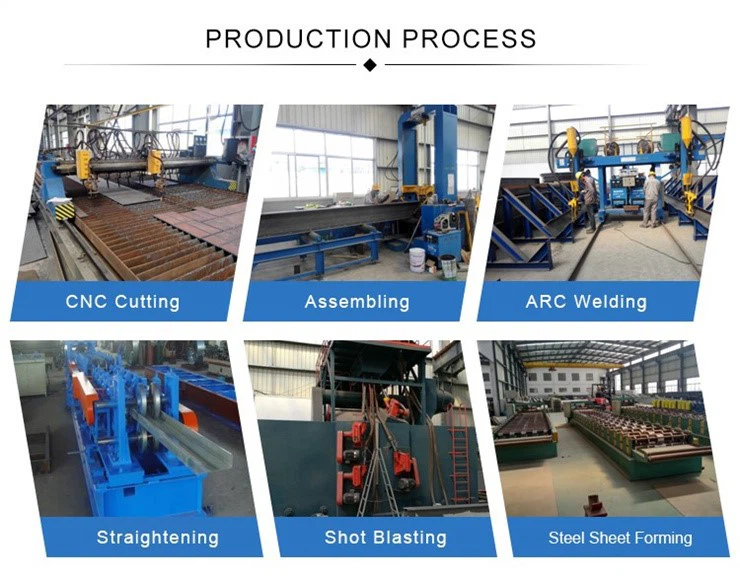

Factories covers an area of 20 thousand square meters which is specialized in designing,manufacturing and installation of steel structure products. The company has two professional production lines, the annual output reaches 30 thousand tons. It also owns professional design team, two senior structural engineers, three senior architects, three senior engineers, sixty professional processing staffs. Our company has three-grade steel structure construction qualification and passed the ISO9000 international systems Certifications.

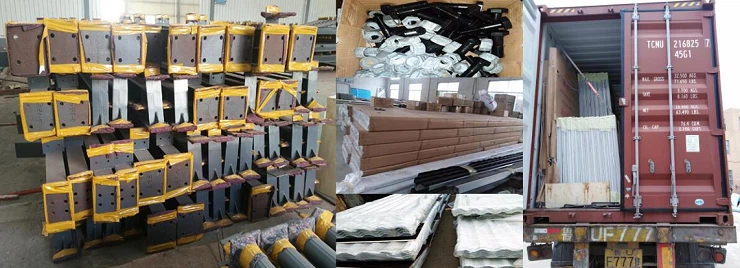

Packing & Delivery:
